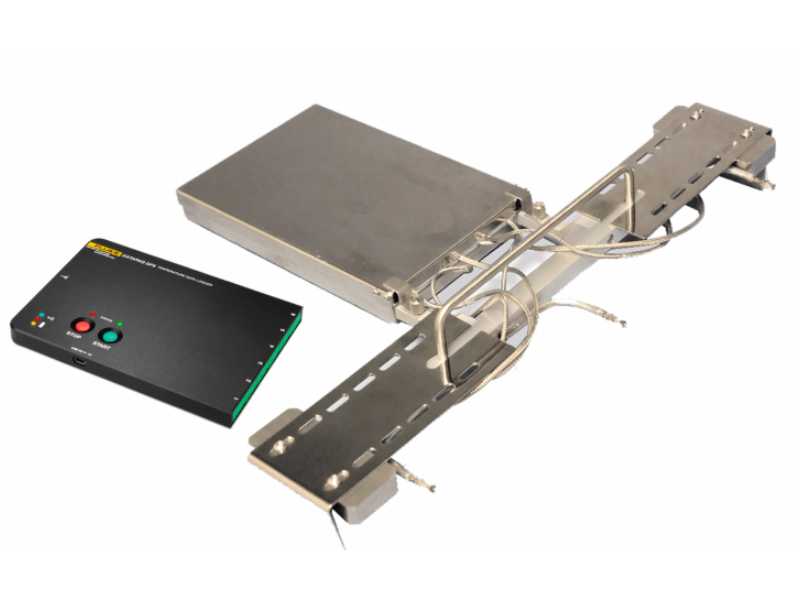

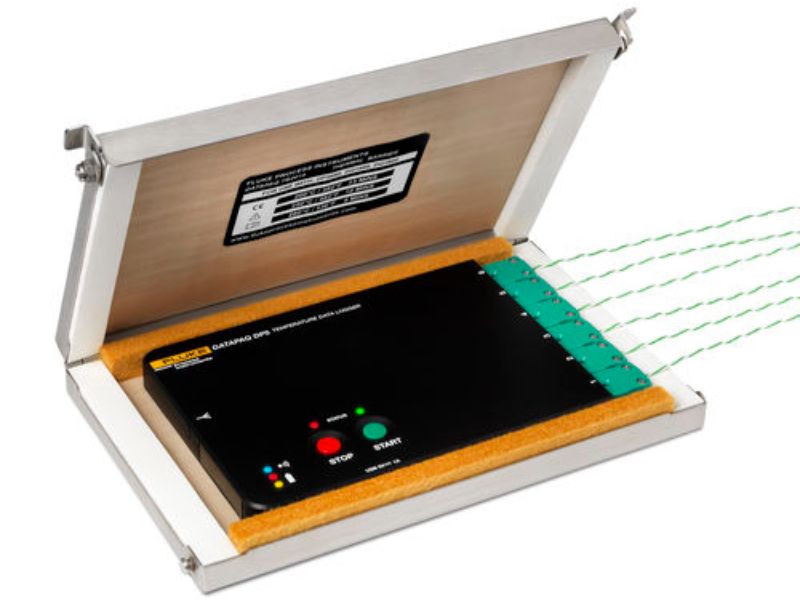

DP5 Oven Temperature Tracker
Fluke Datapaq
Description：
The DATAPAQ DP5 oven temperature recorder system allows workpieces to enter the oven along with the workpieces, measuring the workpiece surface temperature, oven temperature uniformity, and oven temperature profile.
1. Dedicated board temperature and oven temperature profile system for SMT reflow processes
2. Powerful analysis capabilities with Datapaq Insight (Traditional Chinese) analysis software
3. Simple, fast, and highly accurate oven temperature tracker
4. Advanced heat shields in various sizes designed for various industries
5. Intelligent battery management with a built-in fast charger
Application Industries
- PCB SMT Reflow Nitrogen and Vacuum Reflow Oven Temperature Monitoring
- Semiconductor Packaging Oven Temperature Monitoring
- Passive Component Ceramic Sintering Process Oven Temperature Monitoring
- Solar Panel Lamination and Sintering Process Oven Temperature Monitoring
- LCD Panel ITO Coating Oven Temperature Monitoring
- Vacuum Sputtering PVD and Vapor Deposition CVD Oven Temperature Monitoring
- Glass Industry: Glass Strengthening, Glass Hot Dip Treatment, Glass Lamination, and Glass Coating Process Temperature Monitoring
- Textile Industry: Forming Machine Oven Temperature Monitoring (Left, Center, and Right Different Colors)
- Color Coil Baking Oven Temperature Monitoring
DP5 Oven Temperature Recorder Advantages
- Regular measurements allow immediate identification and resolution of process issues, preventing losses caused by downtime and defective products.
- Ensures consistent product quality and adherence to manufacturing specifications, eliminating customer complaints, returns, and rework.
- Reduces energy costs and extends furnace life, improving energy efficiency and reducing costs, contributing to energy conservation and carbon reduction in the green energy industry.
- Optimizes process conditions and enhances production technology quality, increasing productivity and profits, and improving yield and quality.
- Monitors the overall furnace temperature profile.
Datapaq Oven Temperature Measurement Method
(Old) Pay-off Method:
The pay-off method typically requires purchasing very long temperature measuring wires and manually pulling them slowly.
The wire pulling process can also cause the wire to become detached or become caught on objects inside the oven, damaging the oven and the measuring wire.
This in turn leads to repair and replacement costs, increasing production costs.
(New) DATAPAQ Oven Temperature Measurement Technology
The DATAPAQ system can enter the oven along with the workpiece being baked, measuring the workpiece surface temperature and oven temperature uniformity.
After exiting the oven, the data can be quickly retrieved and downloaded to the host computer. Operation is fast and simple, significantly reducing costs and lead time compared to the pay-off method.
DP5 Oven Temperature Recorder Datasheet
- Channels: 4, 6, or 12
- Temperature Range: -100 to 1370°C
- Accuracy: 0.5°C
- Temperature Type: Type K temperature sensing element
- Recording Capacity: 50,000 measurements
- Recording Interval: 0.05 seconds to 10 minutes
- Battery: Rechargeable NIMH batteries
- Complete oven temperature profile analysis
